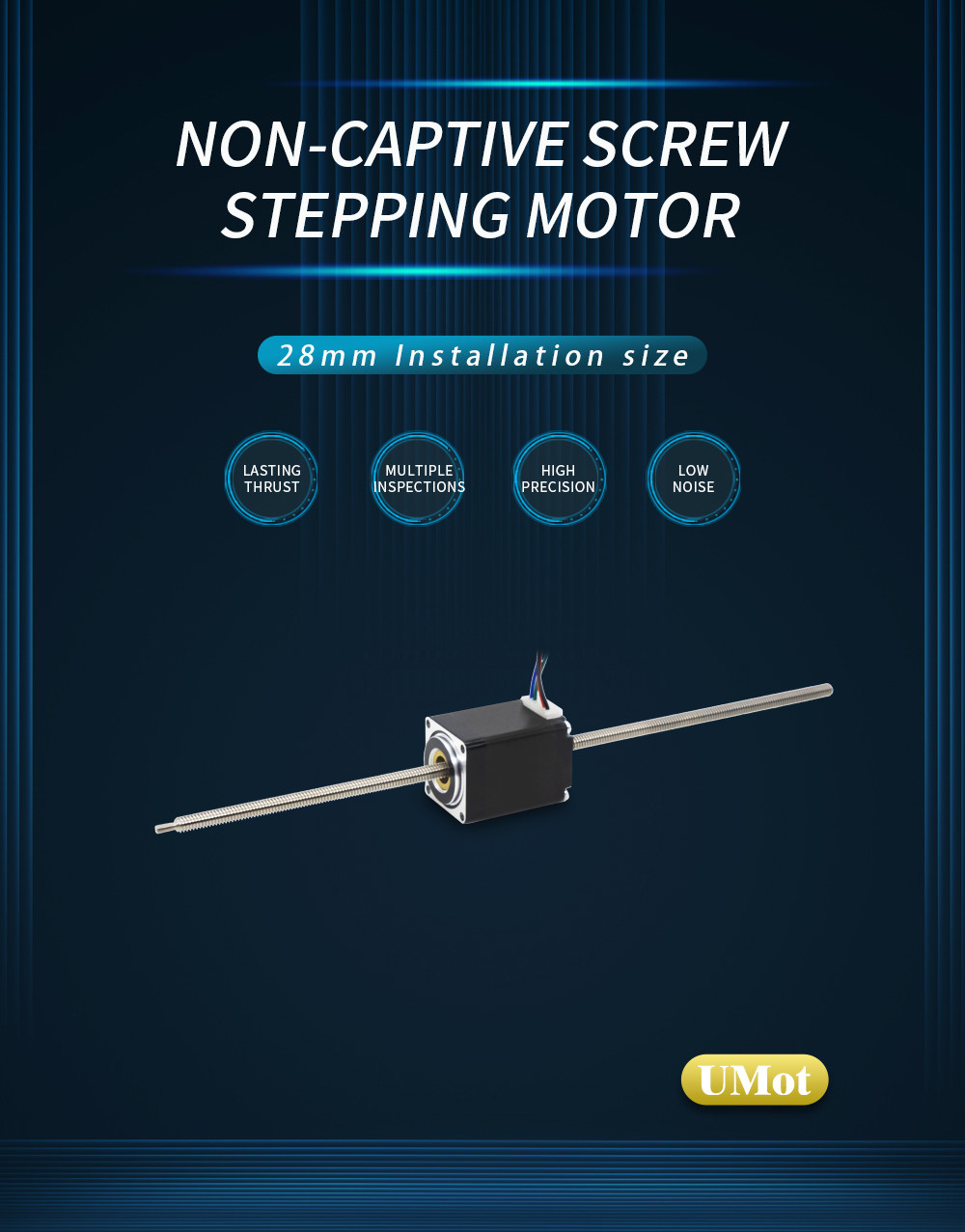

Square 28mm Screw Linear Stepper Motor Nema 11 Non Captive Type Micro Linear Actuator

Product Categories

Chongqing Umot Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Square 28mm Screw Linear Stepper Motor Nema 11 Non Captive Type Micro Linear Actuator
Brand: Umot
Price: 39.80 USD

Warranty : 1year

Place of Origin : Chongqing, China

Brand Name : Umot

Model Number : Nema11 non captive

Phase : 2

Type : Hybrid

Product name : Non-captive linear motor

Step angle : 1.8degree

Rated current : 0.7A

Size : 28x40mm

Screw lead : 2/4mm

Screw diameter : 5mm

Holding torque : 90mN.m

Screw length : 250mm

Shape : Square

Application field : 3D printer automated production line

Port : any port

Supply Ability : 1000000 Set/Sets per Year

MOQ : 2 units

Price : $39.80/units 2-9 units

Contact Now

28mm Screw Linear Stepper Motor Linear Actuator Nema 11 Non Captive Type Micro Linear Actuator Linear Stepper Motor

Item	Value
Product name	Non-captive linear motor
Brand	UMot
Step angle	1.8 degree
Rated current	0.7A
Size	28*40mm
Screw lead	2/4mm
Screw diameter	5mm
Holding torque	90mN.m
Screw length	250mm
Shape	Square
Weight	0.16kg
Application field	3D printer automated production line

Square 28mm Screw Linear Stepper Motor Nema 11 Non Captive Type Micro Linear Actuator Images
